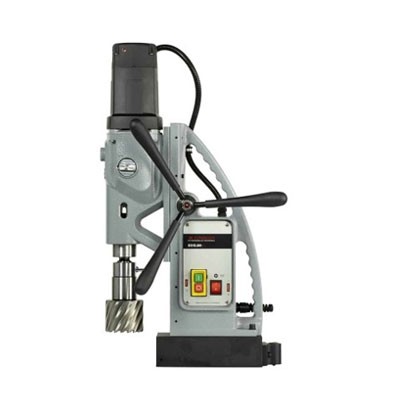

สว่านแท่นแม่เหล็ก Euroboor ECO.80S+ Magnetic drilling machine
Magnetic drilling machine Ø 12 - 80 mm / 27.3 kg
Thanks to its four-speed oil lubricated gearbox our portable Euroboor ECO.80S+ magnetic core drilling machine is able to tackle twist drilling tasks just as easily as big diameter annular cutter challenges. The innovative electronics in this magnetic core drilling machine offer more safety, significantly reduce the risk of damage of the machine, tool and workpiece and protects the user in case of excessive vibrations or sudden displacement. The lifespan is considerably longer and you avoid high maintenance costs.
สถานะของสินค้า : สินค้าพร้อมส่ง
0 บาท
This machine features:
Additional features
Four-speed oil lubricated gearbox
Morse Taper 3 spindle with integrated tool cooling and lubrication
Strong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore lasts longer
Reduced risk of damaging machine, tools and workpiece and hurting operator
Suitable for use in areas and workplaces where power supply is of less quality
Reduced risk of armature damage
Reduced risk of control unit(s) damage
Timely service notification to avoid additional cost by unexpected downtime or unnecessary part replacement
Technical data
| Annular cutting | Ø 12 - 80 mm |
| Twist drilling | Ø 1 - 31.75 mm |
| Countersinking | Ø 10 - 85 mm |
| Length | 365 mm |
| Width | 310 mm |
| Height | 510 - 710 mm |
| Stroke | 260 mm |
| Weight | 27.3 kg |
| Magnet (l x w x h) | 220 x 110 x 64 mm |
| Magnetic force | 3,000 kg |
| Motor power | 1,700 W |
| Total power | 1,800 W |
| Speed (no load) | (I) 200 rpm (II) 300 rpm (III) 415 rpm (IV) 650 rpm |
| Speed (load 1,700 W) | (I) 150 rpm (II) 200 rpm (III) 275 rpm (IV) 400 rpm |
| Spindle (Weldon) | MT3 19.05 mm |
| Voltage | 110 - 120 V / 60 Hz 220 - 240 V / 50 - 60 Hz |
| *Exclusive power cord and handles |
| แบรนด์ | ยูโรบอร์ |
| น้ำหนัก | 27.3 |
