สว่านแท่นแม่เหล็กไฟฟ้า Euroboor ECO.50S

มุมมองเพิ่มเติม

สว่านแท่นแม่เหล็กไฟฟ้า Euroboor ECO.50S

รหัสสินค้า: 11050201135004

Magnetic drilling machine Ø 12 - 50 mm / 12 kg

The Euroboor ECO.50S magnetic core drilling machine converts maximum power through its two speed oil lubricated gearbox. This improves motor efficiency and lifetime of key components. This portable industrial magnetic core drilling machine has an integrated slide which ensures stable support, faster drilling times and more accurate hole sizing.

สถานะของสินค้า : สินค้าพร้อมส่ง

0 บาท

This machine features:



 High-accuracy capstan hub

 MT3 spindle with integrated tool cooling and lubrication

 Strong dual coil CNC machined magnet

 Two-speed oil lubricated gearbox

Additional benefits

Integrated slide for:

  High accuracy

  Enlarged lifecycle

  Minimal vibration

High-precision height adjustment for:

  Low maintenance

  Minimal wear correction

Technical data

Annular cutting Ø 12 - 50 mm
Twist drilling Ø 1 - 23 mm
Countersinking Ø 10 - 55 mm
Length 320 mm
Width 200 mm
Height 445 - 615 mm
Stroke 170 mm
Weight 12 kg*
Magnet (l x w x h) 160 x 80 x 42 mm
Magnetic force 1,700 kg
Motor power 1,250 W
Total power 1,300 W
Speed (no load) (I) 380 rpm
(II) 690 rpm
Speed (load 1,250 W) (I) 235 rpm
(II) 415 rpm
Spindle (Weldon) MT3 19.05 mm
Voltage 220 - 240 V / 50 - 60 Hz
*Exclusive power cord and handles
แบรนด์ ยูโรบอร์
น้ำหนัก 12.0

เขียนรีวิวสินค้าของคุณเอง

คุณกำลังรีวิว: สว่านแท่นแม่เหล็กไฟฟ้า Euroboor ECO.50S

คุณอาจจะสนใจในสินค้าดังต่อไปนี้

  • สว่านแท่นแม่เหล็กไฟฟ้า Euroboor ECO.40S

    Magnetic drilling machine Ø 12 - 40 mm / 10.5 kg

    The Euroboor ECO.40S magnetic core drilling machine is the lightest ø 40 mm drilling machine in the market, fitting cutters up to 110 mm in length. Our portable ECO.40S magnetic core drilling machine has a powerful 1,150 W high efficiency motor, with less heat generation and thus a longer lifespan. This drilling machine’s oil lubricated one-speed gearbox ensures optimal motor efficiency and lifetime of key components.

    0 บาท

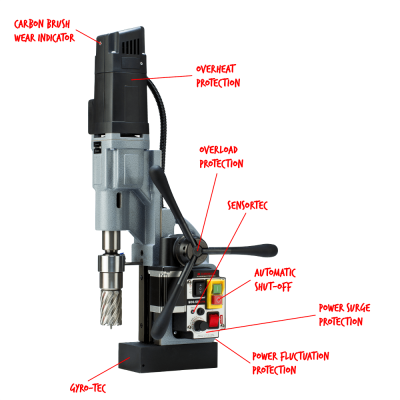

  • สว่านแท่นแม่เหล็กไฟฟ้าเจาะต๊าปเกลียว ป้อนเจาะอัตโนมัติ Euroboor ECO.55S+/TA Auto feed

    Magnetic drilling machine Ø 12 - 55 mm / 15.8 kg

    The portable Euroboor ECO.55S+/TA is our magnetic core drilling machine which will actually drill holes in metal with the highest efficiency for you. This magnetic core drilling machine benefits from an automatic drilling functionality with automatic return for annular cutters. Furthermore, the ECO.55S+/TA has a digital display which show the ideal working load and the Smart Restart Technology prevents excessive tool wear and failure. The machine profits also from innovative electronics which offer more safety, significantly reduce the risk of damage of the machine, tool and workpiece and protects the user in case of excessive vibrations or sudden displacement. The lifespan is considerably longer and you avoid high maintenance costs.

    0 บาท
  • สว่านแท่นแม่เหล็ก Euroboor ECO.36 สำหรับเจาะในที่จำกัด

    Low profile magnetic drilling machine Ø 12 - 36 mm / 10.3 kg

    The Euroboor ECO.36 magnetic core drilling machine is the lowest drilling machine in the market, measuring only 165 mm in height. This magnetic core drilling machine is perfect for drilling in spaces with limited heights such as H-beams, steel structures, plates, profiles, etc. The portable ECO.36 is equipped with a powerful magnet, user friendly Quick Connect cutter fitment system, and easy release / lock feed handle for both left and right operation.

    0 บาท

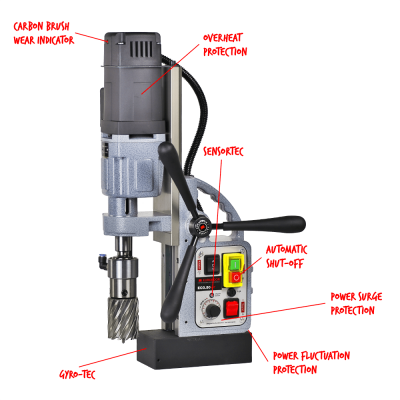

  • สว่านแท่นแม่เหล็กเจาะต๊าปเกลียว Euroboor ECO.50+/T
